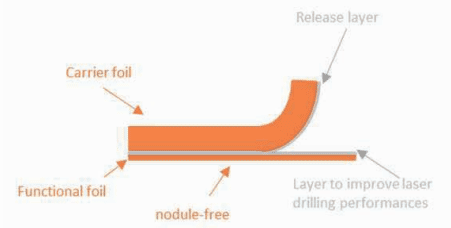

Ultrathin and very smooth carrier supported copper foil design for MSAP process (L/S below ~10/10 µm).

Typical Substrate

Bismaleimide-Triazine (BT) and halogen-free high Tg epoxy resin systems. Also convenient for low loss substrates including Polyphenylene Ether/Oxide (PPE/PPO) based resin systems.

Typical Process

MSAP process (using copper build-up followed by differential "flash etching" and CO2 laser direct ablation for via holes) used in IC Substrates and HDI/SLP ("Substrate Like PCB"). Also convenient for substractive process.

Typical Application

Mobile communication devices (like smartphones and tablets) and laptops.

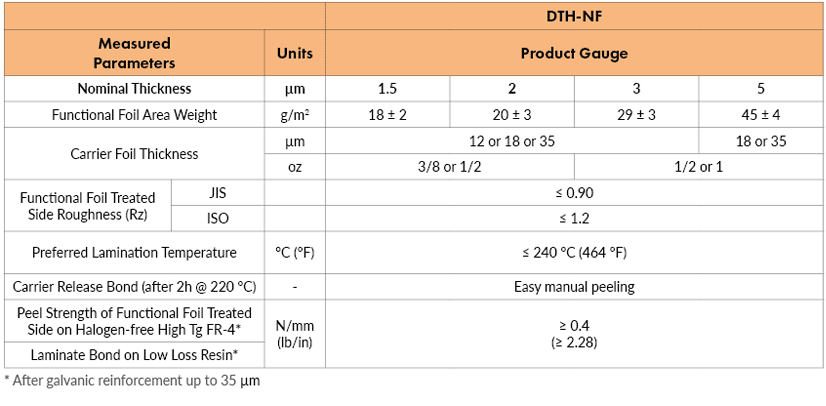

Typical Average Properties
